生成打卡图片
go | html 生成打卡图片

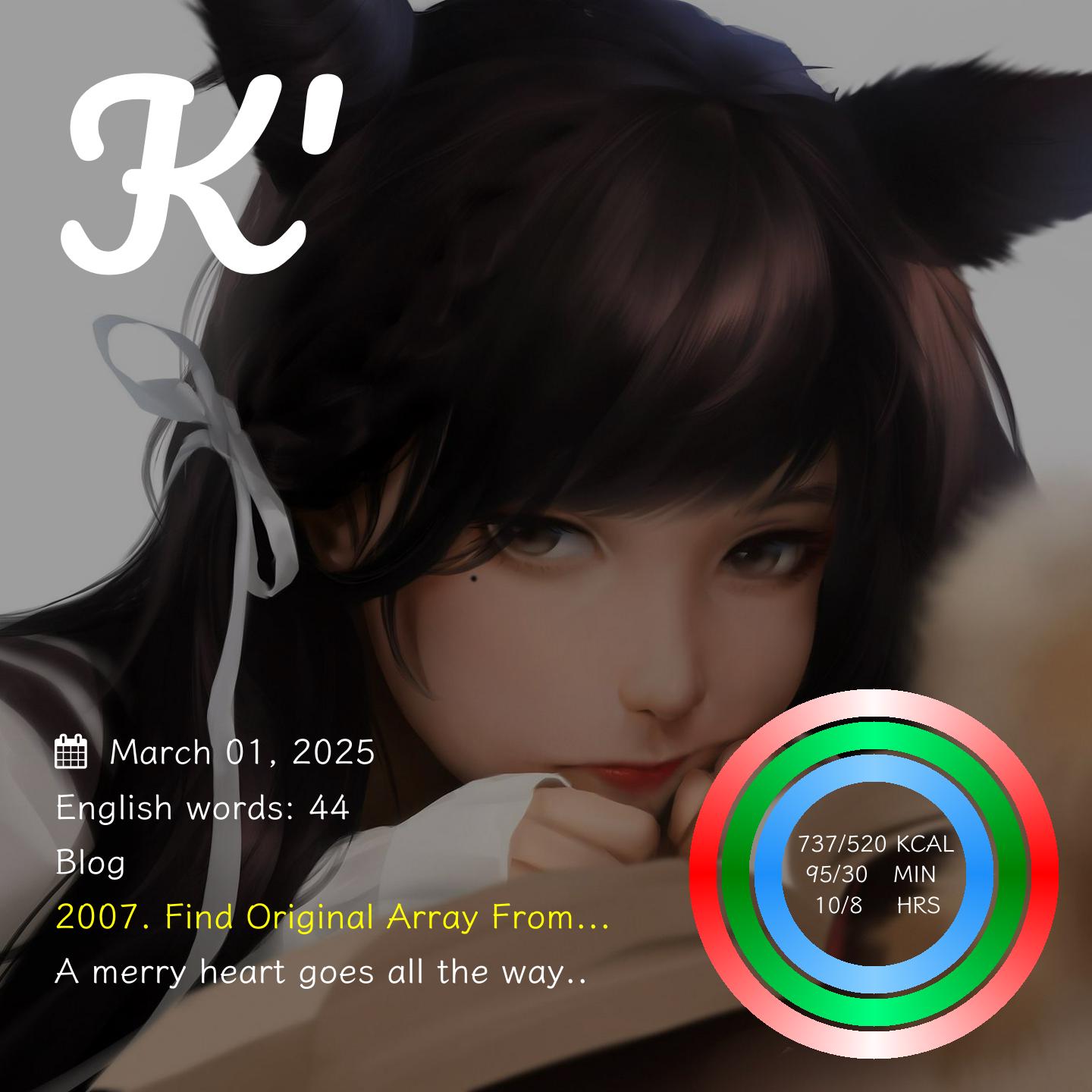

大体效果如下~
go 版本
第一版
package main
import (
_ "embed"
"encoding/json"
"fmt"
"image"
"image/color"
"image/draw"
"image/jpeg"
"image/png"
"io"
"log"
"math"
"net/http"
"os"
"path/filepath"
"strings"
"test0405/img"
"time"
"golang.org/x/image/colornames"
"golang.org/x/image/font"
"golang.org/x/image/font/opentype"
"golang.org/x/image/font/sfnt"
"golang.org/x/image/math/fixed"
)
//go:embed Pacifico-Regular.ttf
var PACIFICO_TTF_SOURCE string
var PACIFICO_TTF *sfnt.Font
//go:embed fontawesome-webfont.ttf
var AWESOME_REGULAR_TTF_SOURCE string
var AWESOME_REGULAR_TTF *sfnt.Font
//go:embed KleeOne-SemiBold.ttf
var KLEE_ONE_TTF_SOURCE string
var KLEE_ONE_TTF *sfnt.Font
func init() {
var err error
PACIFICO_TTF, err = opentype.Parse([]byte(PACIFICO_TTF_SOURCE))
if err != nil {
panic(err)
}
AWESOME_REGULAR_TTF, err = opentype.Parse([]byte(AWESOME_REGULAR_TTF_SOURCE))
if err != nil {
panic(err)
}
KLEE_ONE_TTF, err = opentype.Parse([]byte(KLEE_ONE_TTF_SOURCE))
if err != nil {
panic(err)
}
}
func readImg(path string) image.Image {
// 打开背景图片
file, err := os.Open(path)
if err != nil {
panic(err)
}
defer file.Close()
var img image.Image
if filepath.Ext(path) == "png" {
img, err = png.Decode(file)
} else {
img, _, err = image.Decode(file)
}
if err != nil {
panic(err)
}
return img
}
func min(a, b int) int {
if a < b {
return a
}
return b
}
func main() {
// img.Cut("wallhaven-zyrq1v.jpg")
// img.Resize("wallhaven-6dz777.png")
img.Resize("wallhaven-725qz3.jpeg")
bgImg := readImg("bg.png")
width, height := bgImg.Bounds().Max.X, bgImg.Bounds().Max.Y
fmt.Println(width, height)
// 创建一个新的 RGBA 图片，大小与背景图片相同
rgba := image.NewRGBA(bgImg.Bounds())
// 将背景图片绘制到 RGBA 图片上
draw.Draw(rgba, bgImg.Bounds(), bgImg, image.Point{}, draw.Src)
// 绘制黑色半透明遮罩
black := color.RGBA{0, 0, 0, 97} // 0.3 * 255 = 76，这里的 76 为黑色透明度
draw.Draw(rgba, rgba.Bounds(), &image.Uniform{black}, image.Point{}, draw.Over)
drawTitle(rgba, width, height)
drawCalendar(rgba, width, height)
drawWork(rgba, width, height, []string{"English words: 44", "Blog", "2007. Find Original Array From..."})
drawHealthData(rgba, width, height)
if err := drawEnglish(rgba, width, height); err != nil {
panic(err)
}
// 将生成的图片保存到文件
outputFile, err := os.Create("output.jpg")
if err != nil {
panic(err)
}
defer outputFile.Close()
jpeg.Encode(outputFile, rgba, nil)
}
func getFace(f *opentype.Font, size float64) font.Face {
face, err := opentype.NewFace(f, &opentype.FaceOptions{
Size: size,
DPI: size * 3,
Hinting: font.HintingFull,
})
if err != nil {
panic(err)
}
return face
}
func drawTitle(img *image.RGBA, width, height int) {
size := float64(min(width, height)) * 0.06
face := getFace(PACIFICO_TTF, size)
x, y := float64(width)*0.05, float64(height)*0.25
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("K'")
}
func drawCalendar(img *image.RGBA, width, height int) {
m := min(width, height)
size := float64(m) * 0.15 / 6.5
// 绘制日历
face := getFace(AWESOME_REGULAR_TTF, size)
x, y := int(float64(width)*0.05), int(float64(height)*0.7)
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("\uf073")
// 绘制时间
face = getFace(KLEE_ONE_TTF, size)
x = int(float64(width) * 0.1)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
time := time.Now().Format("January 02, 2006")
d.DrawString(time)
}
func drawLeetcode(img *image.RGBA, width, height int, works []string) {
data := `{"query":"\n query questionOfToday {\n todayRecord {\n date\n userStatus\n question {\n questionId\n frontendQuestionId: questionFrontendId\n difficulty\n title\n titleCn: translatedTitle\n titleSlug\n paidOnly: isPaidOnly\n freqBar\n isFavor\n acRate\n status\n solutionNum\n hasVideoSolution\n topicTags {\n name\n nameTranslated: translatedName\n id\n }\n extra {\n topCompanyTags {\n imgUrl\n slug\n numSubscribed\n }\n }\n }\n lastSubmission {\n id\n }\n }\n}\n ","variables":{},"operationName":"questionOfToday"}`
resp, err := http.Post("https://leetcode.cn/graphql/", "application/json", strings.NewReader(data))
if err != nil {
log.Fatalln(err.Error())
return
}
defer resp.Body.Close()
body, err := io.ReadAll(resp.Body)
if err != nil {
log.Fatalln(err.Error())
return
}
type Question struct {
QuestionId string `json:"questionId"`
Difficulty string `json:"difficulty"`
Title string `json:"title"`
}
type Record struct {
Question Question `json:"question"`
}
type Data struct {
TodayRecord []Record `json:"todayRecord"`
}
type Rsp struct {
Data Data `json:"data"`
}
var rsp Rsp
if err = json.Unmarshal(body, &rsp); err != nil {
log.Fatalln(err.Error())
return
}
records := rsp.Data.TodayRecord
if len(records) == 0 {
log.Fatalln("no record")
return
}
// question := rsp.Data.TodayRecord[0].Question
// return question.QuestionId + ". " + question.Title, nil
return
}
func drawWork(img *image.RGBA, width, height int, works []string) {
m := min(width, height)
size := float64(m) * 0.15 / 6.5
// 绘制日历
face := getFace(KLEE_ONE_TTF, size)
for i, work := range works {
x, y := int(float64(width)*0.05), int(float64(height)*(0.75+0.05*float64(i)))
col := image.NewUniform(color.White)
if strings.Contains(work, ".") {
col = image.NewUniform(colornames.Yellow)
}
d := &font.Drawer{
Dst: img,
Src: col,
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(work)
}
}
func drawHealthData(img *image.RGBA, width, height int) {
kcal, exercise, stand := 737, 95, 10
kcalTotal, exerciseTotal, standTotal := 520, 30, 8
x := int(float64(width) * 0.73)
size := float64(min(width, height)) * 0.15 / 8
face := getFace(KLEE_ONE_TTF, size)
y := int(float64(height) * 0.78)
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf("%3d/%3d KCAL", kcal, kcalTotal))
y = int(float64(height)*0.78) + int(size*1.5)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf("%3d/%2d MIN", exercise, exerciseTotal))
y = int(float64(height)*0.78) + int(size*3)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf(" %2d/%d HRS", stand, standTotal))
x, y = int(float64(width)*0.8), int(float64(height)*0.8)
m := float64(min(width, height))
drawRing(img, x, y, int(m*0.17), int(m*0.025), color.RGBA{255, 0, 0, 255}, color.RGBA{255, 251, 251, 255}, float64(kcal)/float64(kcalTotal))
drawRing(img, x, y, int(m*0.14), int(m*0.025), color.RGBA{0, 128, 0, 255}, color.RGBA{0, 255, 127, 255}, float64(exercise)/float64(exerciseTotal))
drawRing(img, x, y, int(m*0.11), int(m*0.025), color.RGBA{30, 144, 250, 255}, color.RGBA{135, 206, 255, 255}, float64(stand)/float64(standTotal))
}
// 绘制圆环
// img 图纸
// x, y 中心点
// r 半径
// startColor, endColor 开始、结束颜色
// percent 圆环百分比
func drawRing(img *image.RGBA, x, y, r, thickness int, startColor, endColor color.RGBA, percent float64) {
abs := func(num float64) float64 {
if num < 0 {
return -num
}
return num
}
angle := func(x, y int) float64 {
angle := math.Atan2(float64(x), float64(-y))
if angle < 0 {
angle += 2 * math.Pi
}
return angle
}
for i := -r; i <= r; i++ {
for j := -r; j <= r; j++ {
// 不处于圆环不绘制
if i*i+j*j > r*r || math.Sqrt(float64(i*i+j*j)) < float64(r-thickness) {
continue
}
// 小于半径根据角度计算颜色
if angle(i, j) > 2*math.Pi*percent {
continue
}
p := abs(math.Atan(float64(j)/float64(i))) * 2 / math.Pi
color := color.RGBA{
startColor.R + uint8(float64(endColor.R-startColor.R)*p),
startColor.G + uint8(float64(endColor.G-startColor.G)*p),
startColor.B + uint8(float64(endColor.B-startColor.B)*p),
255,
}
img.Set(x+i, y+j, color)
}
}
}
func drawEnglish(img *image.RGBA, width, height int) error {
url := "http://open.iciba.com/dsapi"
resp, err := http.Get(url)
if err != nil {
return err
}
defer resp.Body.Close()
body, err := io.ReadAll(resp.Body)
if err != nil {
return err
}
type Rsp struct {
Content string `json:"content"`
}
var rsp Rsp
err = json.Unmarshal(body, &rsp)
if err != nil {
return err
}
content := rsp.Content
size := float64(min(width, height)) * 0.15 / 6.5
face := getFace(KLEE_ONE_TTF, size)
nContents := []string{}
// contents := strings.Split(content, ".")
contents := []string{content[:len(content)-1]}
for _, content := range contents {
if content == "" {
continue
}
content += "."
words := strings.Split(content, " ")
temp := ""
for _, word := range words {
if word == "" {
continue
}
if len(temp)+len(word) > 40 {
nContents = append(nContents, temp)
temp = ""
}
if len(temp) > 0 {
temp += " "
}
temp += word
}
if len(temp) > 0 {
nContents = append(nContents, temp)
}
}
contents = nContents
for i, c := range contents {
if c == "" {
continue
}
x, y := int(float64(width)*0.05), int(float64(height)*0.9)+int(size*float64(i))
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(c)
}
// d.DrawString(content)
return nil
}第二版
package main
import (
_ "embed"
"encoding/json"
"fmt"
"image"
"image/color"
"image/draw"
"image/jpeg"
"image/png"
"io"
"math"
"net/http"
"os"
"path/filepath"
"strings"
"test0405/img"
"time"
"golang.org/x/image/colornames"
"golang.org/x/image/font"
"golang.org/x/image/font/opentype"
"golang.org/x/image/font/sfnt"
"golang.org/x/image/math/fixed"
)
//go:embed Pacifico-Regular.ttf
var PACIFICO_TTF_SOURCE string
var PACIFICO_TTF *sfnt.Font
//go:embed fontawesome-webfont.ttf
var AWESOME_REGULAR_TTF_SOURCE string
var AWESOME_REGULAR_TTF *sfnt.Font
//go:embed fa-solid-900.ttf
var AWESOME_SOLID_TTF_SOURCE string
var AWESOME_SOLID_TTF *sfnt.Font
//go:embed KleeOne-SemiBold.ttf
var KLEE_ONE_TTF_SOURCE string
var KLEE_ONE_TTF *sfnt.Font
//go:embed TaiWanQuanZiKu.ttf
var TAIWAN_QUANZI_KU_TTF_SOURCE string
var TAIWAN_QUANZI_KU_TTF *sfnt.Font
//go:embed RampartOne-Regular.ttf
var RAMPTONE_TTF_SOURCE string
var RAMPTONE_TTF *sfnt.Font
func init() {
var err error
PACIFICO_TTF, err = opentype.Parse([]byte(PACIFICO_TTF_SOURCE))
if err != nil {
panic(err)
}
AWESOME_REGULAR_TTF, err = opentype.Parse([]byte(AWESOME_REGULAR_TTF_SOURCE))
if err != nil {
panic(err)
}
AWESOME_SOLID_TTF, err = opentype.Parse([]byte(AWESOME_SOLID_TTF_SOURCE))
if err != nil {
panic(err)
}
KLEE_ONE_TTF, err = opentype.Parse([]byte(KLEE_ONE_TTF_SOURCE))
if err != nil {
panic(err)
}
TAIWAN_QUANZI_KU_TTF, err = opentype.Parse([]byte(TAIWAN_QUANZI_KU_TTF_SOURCE))
if err != nil {
panic(err)
}
RAMPTONE_TTF, err = opentype.Parse([]byte(RAMPTONE_TTF_SOURCE))
if err != nil {
panic(err)
}
}
func readImg(path string) image.Image {
// 打开背景图片
file, err := os.Open(path)
if err != nil {
panic(err)
}
defer file.Close()
var img image.Image
if filepath.Ext(path) == "png" {
img, err = png.Decode(file)
} else {
img, _, err = image.Decode(file)
}
if err != nil {
panic(err)
}
return img
}
func min(a, b int) int {
if a < b {
return a
}
return b
}
func main() {
// img.Cut("wallhaven-zyrq1v.jpg")
// img.Resize("wallhaven-6dz777.png")
// img.Resize("wallhaven-2kpe5y.jpg")
img.Resize("wallhaven-k7y68m.png")
bgImg := readImg("bg.png")
width, height := bgImg.Bounds().Max.X, bgImg.Bounds().Max.Y
fmt.Println(width, height)
// 创建一个新的 RGBA 图片，大小与背景图片相同
rgba := image.NewRGBA(bgImg.Bounds())
// 将背景图片绘制到 RGBA 图片上
draw.Draw(rgba, bgImg.Bounds(), bgImg, image.Point{}, draw.Src)
// 绘制黑色半透明遮罩
black := color.RGBA{0, 0, 0, 97} // 0.3 * 255 = 76，这里的 76 为黑色透明度
draw.Draw(rgba, rgba.Bounds(), &image.Uniform{black}, image.Point{}, draw.Over)
drawRectangle(width, height, 0.02, 0.43, 0.96, 0.4, rgba) // 新闻框
drawRectangle(width, height, 0.52, 0.2, 0.46, 0.185, rgba) // LeetCode日历框
// 绘制标题、天气、LeetCode日历、日历、工作内容
drawTitle(rgba, width, height)
drawWeather(rgba, width, height)
drawLeetCodeCalendar(rgba, width, height)
drawCalendar(rgba, width, height)
drawWork(rgba, width, height, []string{`1. OpenAI开放语言模型最快下周亮相`, `2. 英伟达市值达4万亿美元，创历史新高`, `3. 微软35%新产品代码由AI编写`, `4. Meta收购雷朋母公司股权，加码AI智能眼镜`, `5. 苹果计划2025年推出升级版Vision Pro`, `6. 美国设立AI教育学院，培训40万教师`, `7. OpenAI等资助AI教师培训，总额2300万美元`})
// 将生成的图片保存到文件
outputFile, err := os.Create("output.jpg")
if err != nil {
panic(err)
}
defer outputFile.Close()
jpeg.Encode(outputFile, rgba, nil)
}
func drawRectangle(width, height int, startPercentX, startPercentY, widthPercent, heightPercent float64, rgba *image.RGBA) {
// 绘制一个圆角的灰色透明矩形，使用 draw.Draw 绘制，透明度为 0.7
rectX := int(float64(width) * startPercentX)
rectY := int(float64(height) * startPercentY)
rectWidth := int(float64(width) * widthPercent)
rectHeight := int(float64(height) * heightPercent)
radius := int(float64(min(rectWidth, rectHeight)) * 0.1) // 圆角半径
// 创建一个灰色半透明颜色
grayColor := color.RGBA{0, 0, 0, 100} // 0.7 * 255 = 178.5 约等于 179，这里的 179 为灰色透明度
// 创建圆角矩形遮罩
mask := image.NewAlpha(image.Rect(0, 0, width, height))
// 绘制圆角矩形到遮罩上
for y := 0; y < height; y++ {
for x := 0; x < width; x++ {
// 检查点是否在矩形范围内
if x >= rectX && x < rectX+rectWidth && y >= rectY && y < rectY+rectHeight {
// 检查是否在四个角的圆角区域内
inRect := true
// 左上角
if x < rectX+radius && y < rectY+radius {
dx := float64(rectX + radius - x)
dy := float64(rectY + radius - y)
inRect = (dx*dx + dy*dy) <= float64(radius*radius)
}
// 右上角
if x >= rectX+rectWidth-radius && y < rectY+radius {
dx := float64(x - (rectX + rectWidth - radius - 1))
dy := float64(rectY + radius - y)
inRect = (dx*dx + dy*dy) <= float64(radius*radius)
}
// 左下角
if x < rectX+radius && y >= rectY+rectHeight-radius {
dx := float64(rectX + radius - x)
dy := float64(y - (rectY + rectHeight - radius - 1))
inRect = (dx*dx + dy*dy) <= float64(radius*radius)
}
// 右下角
if x >= rectX+rectWidth-radius && y >= rectY+rectHeight-radius {
dx := float64(x - (rectX + rectWidth - radius - 1))
dy := float64(y - (rectY + rectHeight - radius - 1))
inRect = (dx*dx + dy*dy) <= float64(radius*radius)
}
if inRect {
mask.SetAlpha(x, y, color.Alpha{255})
}
}
}
}
// 使用遮罩绘制灰色半透明矩形
draw.DrawMask(rgba, rgba.Bounds(), &image.Uniform{grayColor}, image.Point{}, mask, image.Point{}, draw.Over)
}
func getFace(f *opentype.Font, size float64) font.Face {
face, err := opentype.NewFace(f, &opentype.FaceOptions{
Size: size,
DPI: size * 3,
Hinting: font.HintingFull,
})
if err != nil {
panic(err)
}
return face
}
func drawTitle(img *image.RGBA, width, height int) {
size := float64(min(width, height)) * 0.04
face := getFace(PACIFICO_TTF, size)
x, y := float64(width)*0.77, float64(height)*0.9
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("42tr")
}
func drawLeetCodeTitle(img *image.RGBA, width, height int) {
size := float64(min(width, height)) * 0.03
face := getFace(RAMPTONE_TTF, size)
x, y := float64(width)*0.58, float64(height)*0.24
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("LeetCode")
}
func drawLeetCodeCalendar(img *image.RGBA, width, height int) {
drawLeetCodeTitle(img, width, height)
m := min(width, height)
size := float64(m) * 0.12 / 6.5
face := getFace(AWESOME_SOLID_TTF, size)
x, y := float64(width)*0.58, float64(height)*0.27
cal := [32]int{}
cal[0] = -1
cal[9] = 1
cal[10] = 1
cal[11] = 1
cal[12] = 2
cal[13] = 1
cal[14] = 1
doneColor := image.NewUniform(colornames.Greenyellow)
for i, done := range cal {
if done == -1 {
continue
}
color := image.NewUniform(color.White)
if done == 1 {
color = doneColor
} else if done == 2 {
color = image.NewUniform(colornames.Red)
}
xx := x + float64(i%7)*float64(m)*0.33/6.5
yy := y + float64(i/7)*float64(m)*0.33/6.5
d := &font.Drawer{
Dst: img,
Src: color,
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(xx * 64),
Y: fixed.Int26_6(yy * 64),
},
}
d.DrawString("\uf111")
}
}
func drawWeather(img *image.RGBA, width, height int) {
m := min(width, height)
size := float64(m) * 0.2 / 6.5
face := getFace(AWESOME_SOLID_TTF, size)
bigSize := float64(m) * 0.3 / 6.5
bigFace := getFace(AWESOME_SOLID_TTF, bigSize)
x, y := float64(width)*0.06, float64(height)*0.18
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: bigFace,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("\uf185")
x = float64(width) * 0.15
for i := range []int{0, 1, 2} {
x += float64(width) * 0.06
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
if i == 0 {
d.DrawString("\uf185")
} else {
d.DrawString("\uf73d")
}
}
}
func drawCalendar(img *image.RGBA, width, height int) {
m := min(width, height)
size := float64(m) * 0.25 / 6.5
// 绘制日历
face := getFace(AWESOME_REGULAR_TTF, size)
x, y := int(float64(width)*0.05), int(float64(height)*0.1)
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString("\uf073")
// 绘制时间
face = getFace(KLEE_ONE_TTF, size)
x = int(float64(width) * 0.15)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
time := time.Now().Format("January 02, 2006")
d.DrawString(time)
}
func drawWork(img *image.RGBA, width, height int, works []string) {
m := min(width, height)
size := float64(m) * 0.2 / 6.5
faceTitle := getFace(TAIWAN_QUANZI_KU_TTF, float64(m)*0.19/6.5)
faceContent := getFace(TAIWAN_QUANZI_KU_TTF, float64(m)*0.17/6.5)
y := int(float64(height) * 0.48)
for _, work := range works {
if work == "" {
continue
}
// Determine color based on content
col := image.NewUniform(colornames.Violet)
face := faceContent
if strings.Contains(work, ".") {
col = image.NewUniform(colornames.Yellow)
face = faceTitle
}
// Split work into chunks of max 30 characters
var chunks []string
work := []rune(work)
for len(work) > 0 {
chunkSize := min(28, len(work))
chunks = append(chunks, string(work[:chunkSize]))
work = work[chunkSize:]
}
// Draw each chunk on a separate line
for _, chunk := range chunks {
x := int(float64(width) * 0.07)
d := &font.Drawer{
Dst: img,
Src: col,
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(chunk)
// Move to next line with appropriate spacing
y += int(size * 1.5)
}
// Add some extra spacing between different work items
y += int(size * 0.5)
}
}
func drawHealthData(img *image.RGBA, width, height int) {
kcal, exercise, stand := 737, 95, 10
kcalTotal, exerciseTotal, standTotal := 520, 30, 8
x := int(float64(width) * 0.73)
size := float64(min(width, height)) * 0.15 / 8
face := getFace(KLEE_ONE_TTF, size)
y := int(float64(height) * 0.78)
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf("%3d/%3d KCAL", kcal, kcalTotal))
y = int(float64(height)*0.78) + int(size*1.5)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf("%3d/%2d MIN", exercise, exerciseTotal))
y = int(float64(height)*0.78) + int(size*3)
d = &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(fmt.Sprintf(" %2d/%d HRS", stand, standTotal))
x, y = int(float64(width)*0.8), int(float64(height)*0.8)
m := float64(min(width, height))
drawRing(img, x, y, int(m*0.17), int(m*0.025), color.RGBA{255, 0, 0, 255}, color.RGBA{255, 251, 251, 255}, float64(kcal)/float64(kcalTotal))
drawRing(img, x, y, int(m*0.14), int(m*0.025), color.RGBA{0, 128, 0, 255}, color.RGBA{0, 255, 127, 255}, float64(exercise)/float64(exerciseTotal))
drawRing(img, x, y, int(m*0.11), int(m*0.025), color.RGBA{30, 144, 250, 255}, color.RGBA{135, 206, 255, 255}, float64(stand)/float64(standTotal))
}
// 绘制圆环
// img 图纸
// x, y 中心点
// r 半径
// startColor, endColor 开始、结束颜色
// percent 圆环百分比
func drawRing(img *image.RGBA, x, y, r, thickness int, startColor, endColor color.RGBA, percent float64) {
abs := func(num float64) float64 {
if num < 0 {
return -num
}
return num
}
angle := func(x, y int) float64 {
angle := math.Atan2(float64(x), float64(-y))
if angle < 0 {
angle += 2 * math.Pi
}
return angle
}
for i := -r; i <= r; i++ {
for j := -r; j <= r; j++ {
// 不处于圆环不绘制
if i*i+j*j > r*r || math.Sqrt(float64(i*i+j*j)) < float64(r-thickness) {
continue
}
// 小于半径根据角度计算颜色
if angle(i, j) > 2*math.Pi*percent {
continue
}
p := abs(math.Atan(float64(j)/float64(i))) * 2 / math.Pi
color := color.RGBA{
startColor.R + uint8(float64(endColor.R-startColor.R)*p),
startColor.G + uint8(float64(endColor.G-startColor.G)*p),
startColor.B + uint8(float64(endColor.B-startColor.B)*p),
255,
}
img.Set(x+i, y+j, color)
}
}
}
func drawEnglish(img *image.RGBA, width, height int) error {
url := "http://open.iciba.com/dsapi"
resp, err := http.Get(url)
if err != nil {
return err
}
defer resp.Body.Close()
body, err := io.ReadAll(resp.Body)
if err != nil {
return err
}
type Rsp struct {
Content string `json:"content"`
}
var rsp Rsp
err = json.Unmarshal(body, &rsp)
if err != nil {
return err
}
content := rsp.Content
size := float64(min(width, height)) * 0.15 / 6.5
face := getFace(KLEE_ONE_TTF, size)
nContents := []string{}
// contents := strings.Split(content, ".")
contents := []string{content[:len(content)-1]}
for _, content := range contents {
if content == "" {
continue
}
content += "."
words := strings.Split(content, " ")
temp := ""
for _, word := range words {
if word == "" {
continue
}
if len(temp)+len(word) > 40 {
nContents = append(nContents, temp)
temp = ""
}
if len(temp) > 0 {
temp += " "
}
temp += word
}
if len(temp) > 0 {
nContents = append(nContents, temp)
}
}
contents = nContents
for i, c := range contents {
if c == "" {
continue
}
x, y := int(float64(width)*0.05), int(float64(height)*0.9)+int(size*float64(i))
d := &font.Drawer{
Dst: img,
Src: image.NewUniform(color.White),
Face: face,
Dot: fixed.Point26_6{
X: fixed.Int26_6(x * 64),
Y: fixed.Int26_6(y * 64),
},
}
d.DrawString(c)
}
// d.DrawString(content)
return nil
}html 版本
<html>
<head>
<script src="./html2canvas.min.js" crossorigin="anonymous" referrerpolicy="no-referrer" ></script>
<!-- <link rel="stylesheet" href="https://cdn.staticfile.org/font-awesome/4.7.0/css/font-awesome.css"> -->
<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/4.7.0/css/font-awesome.min.css"
integrity="sha512-SfTiTlX6kk+qitfevl/7LibUOeJWlt9rbyDn92a1DqWOw9vWG2MFoays0sgObmWazO5BQPiFucnnEAjpAB+/Sw==" crossorigin="anonymous" referrerpolicy="no-referrer" />
<script src="echart.min.js"></script>
<link rel="preload" href="Virgil.woff2" as="font" type="font/woff2" crossorigin="anonymous">
<link rel="preload" href="Cascadia.woff2" as="font" type="font/woff2" crossorigin="anonymous">
<style>
/* http://www.eaglefonts.com/fg-virgil-ttf-131249.htm */
@font-face {
font-family: "Virgil";
src: url("Virgil.woff2");
font-display: swap;
}
/* https://github.com/microsoft/cascadia-code */
@font-face {
font-family: "Cascadia";
src: url("Cascadia.woff2");
font-display: swap;
}
#all {
font-size: 40px;
font-family: "Cascadia";
}
#gradient {
background: radial-gradient(transparent 50%, black), linear-gradient(transparent, black);
opacity: .3;
position: fixed;
border-radius: 15px;
top: 0;
height: 1920px;
width: 1440px;
z-index: -1;
}
#content {
/* align-items: center; */
display: flex;
height: 640px;
width: 1440px;
}
#capture {
/* padding: 10px; */
position: fixed;
border-radius: 15px;
background-image:url('wallhaven-zyrq1v.jpg');
background-size: cover;
background-position: center center;
z-index: -2;
border: none;
height: 1920px;
width: 1440px;
}
</style>
</head>
<body style="margin: 0px;">
<div id="all" style="padding: 0px; height: 1920px; width: 1440px;border-radius:3px;">
<div id="capture">
<div id="gradient"></div>
</div>
<div id="content">
<div id="chart" style="position: absolute; top: 1170; left: 690px; width: 750px; height: 750px;"></div>
<div >
<p style="color: #fff; margin-left: 120px; font-size: 200px; font-weight: bold;font-family: 'Virgil';">K'</p>
</div>
<div style="position: absolute; top: 1350px; margin-left: 90px;">
<!-- fa fa-calendar-o -->
<i class="fa fa-calendar-check-o" style="color: white;"></i> <p style="color: #fff; display: inline;">January 19, 2023</p>
<p style="color: #fff;">English word: 43</p>
<!-- <p style="color: #fff;">Rust: axum & sqlx</p> -->
<!-- <p style="color: #fff;">System Architecture: SPOOLING</p> -->
<p style="color: #fff;">System Architecture: exam review</p>
<p style="color: rgb(0, 175, 155);">Strong Password Checker II</p>
<!-- <p style="color: rgb(255, 184, 0);">Evaluate the Bracket Pairs <br>of a String</p> -->
<!-- <p style="color: rgb(255, 45, 85);">Number of Different <br>Subsequences GCDs</p> -->
<!-- We all carry something with us. -->
<p style="color: #fff; font-weight: bold;">Don't let anybody tell you <br>they are better than you.</p>
</div>
</div>
</div>
<script>
var kcal = 713, min = 108, hr = 10
var mychart = echarts.init(document.getElementById("chart"))
var option = {
backgroundColor: null,
title: [
{
text: kcal+'/700KCAL\n'+min+'/60 MIN\n '+hr+'/6 HRS',
textStyle: {
color: '#fff',
fontSize: 33,
// fontWeight: 'bold',
fontFamily: "Cascadia"
},
itemGap: 10,
left: '35%',
top: '44%',
},
],
angleAxis: {
polarIndex: 0,
min: 0,
max: 100,
show: false,
boundaryGap: ['50%', '50%'],
startAngle: 90,
},
radiusAxis: {
type: 'category',
show: true,
axisLabel: {
show: false,
},
axisLine: {
show: false,
},
axisTick: {
show: false,
},
},
polar: [
{
center: ['50%', '50%'], //中心点位置
radius: '100%', //图形大小
},
],
xAxis: {
show: false,
type: 'value',
},
yAxis: [
{
type: 'category',
inverse: true,
axisLabel: {
show: false,
textStyle: {
color: '#444444',
},
},
splitLine: {
show: false,
},
axisTick: {
show: false,
},
axisLine: {
show: false,
},
},
],
series: [
{
type: 'bar',
z: 10,
data: [hr*100/6],
showBackground: true,
backgroundStyle: {
borderWidth: 10,
width: 2,
},
coordinateSystem: 'polar',
roundCap: true,
barWidth: '10%', //大的占比环
itemStyle: {
normal: {
opacity: 1,
// color: '#0000ff',
color: new echarts.graphic.LinearGradient(
1, 0, 0, 1, //4个参数用于配置渐变色的起止位置, 这4个参数依次对应右/下/左/上四个方位. 而0 0 0 1则代表渐变色从正上方开始
[
{offset: 0, color: '#87cefa'},
{offset: 0.5, color: '#1e90ff'},
// {offset: 1, color: '#ddd'}
] //数组, 用于配置颜色的渐变过程. 每一项为一个对象, 包含offset和color两个参数. offset的范围是0 ~ 1, 用于表示位置
)
},
},
},
{
type: 'bar',
z: 10,
data: [min*10/6],
showBackground: true,
coordinateSystem: 'polar',
roundCap: true,
barWidth: '10%', //大的占比环
itemStyle: {
normal: {
opacity: 1,
// color: '#00ff00',
color: new echarts.graphic.LinearGradient(
1, 0, 0, 1, //4个参数用于配置渐变色的起止位置, 这4个参数依次对应右/下/左/上四个方位. 而0 0 0 1则代表渐变色从正上方开始
[
{offset: 0, color: '#00ff7f'},
{offset: 0.5, color: '#008000'},
// {offset: 1, color: '#ddd'}
] //数组, 用于配置颜色的渐变过程. 每一项为一个对象, 包含offset和color两个参数. offset的范围是0 ~ 1, 用于表示位置
)
},
},
},
{
type: 'bar',
z: 10,
data: [kcal/7],
showBackground: true,
coordinateSystem: 'polar',
roundCap: true,
barWidth: '10%', //大的占比环
itemStyle: {
normal: {
opacity: 1,
// color: '#ff0000',
color: new echarts.graphic.LinearGradient(
1, 0, 0, 1, //4个参数用于配置渐变色的起止位置, 这4个参数依次对应右/下/左/上四个方位. 而0 0 0 1则代表渐变色从正上方开始
[
{offset: 0, color: '#fffafa'},
{offset: 0.5, color: '#ff0000'},
// {offset: 1, color: '#ddd'}
] //数组, 用于配置颜色的渐变过程. 每一项为一个对象, 包含offset和color两个参数. offset的范围是0 ~ 1, 用于表示位置
)
},
},
},
],
};
mychart.setOption(option);
var opts = {
backgroundColor: null,//设置图片背景为透明
allowTaint: true, useCORS: true
};
function genImg() {
html2canvas(document.querySelector("#all"), opts).then(canvas => {
document.body.appendChild(canvas)
var base64 = canvas.toDataURL();
console.log(base64)
var textNode = document.createTextNode('这是一段文本');
document.body.appendChild(textNode)
// const base64 = canvas.toDataURL('image/png')
// console.log(base64)
});
}
setTimeout("genImg()", 1000)
</script>
</body>
</html>
